Design Project Description

Team Design Project Part 2

Link to Word Document


Summary

Working as a team - develop a chassis design that will allow for rapid and easy assembly of a mobile robot platform. The idea is that individuals could purchase a project kit of components (see below) and then select a chassis design that is best suited to their needs.

Your team's design may...
choose to "hide" most of the components within an enclosure;
or...
layout all the components such that they are easily accessible;
or...
include space for add on components such as a nerf dart gun, a GoPro or maybe a landing platform for a nano drone
or...
have a sleek in-line skate look that steers by changing the orientation of one (or both) of the wheels
or...
go for the Segway look and travel upright balancing on two wheels

LOTS and LOTS of options so try not to be




Project Kit Components



Arduino Uno R3 (Atmega328 - assembled)
https://www.adafruit.com/products/50
$24.95

 SolidWorks Model - Single Part
Obtained from GrabCad
Adafruit Motor/Stepper/Servo Shield for Arduino v2 Kit - v2.3
https://www.adafruit.com/products/1438
$19.95

 SolidWorks Models - Single Part , Assembly
Obtained from GrabCad
Proto-Screwshield (Wingshield) R3 Kit for Arduino
https://www.adafruit.com/products/196
$14.95
Half-size breadboard
https://www.adafruit.com/products/64
$5.00
Photo cell (CdS photoresistor)
https://www.adafruit.com/products/161
$0.95
ADXL335 - 5V ready triple-axis accelerometer (+-3g analog out)
https://www.adafruit.com/products/163
$14.95
Piezo Buzzer - PS1240
https://www.adafruit.com/products/160
$1.50
IR (Infrared) Receiver Sensor - TSOP38238
https://www.adafruit.com/products/157
$1.95
Tactile Switch Buttons (12mm square, 6mm tall) x 10 pack
https://www.adafruit.com/products/1119
$2.50
Micro Switch w/Lever - 2 Terminal
https://www.adafruit.com/products/818
$1.50

 SolidWorks Model
Breadboarding wire bundle
https://www.adafruit.com/products/153
$6.00
Diffused Red 5mm LED (25 pack)
https://www.adafruit.com/products/299
$4.00
Super Bright Yellow 5mm LED (25 pack)
https://www.adafruit.com/products/2700
$4.95



Hobby Gearmotor - 65 RPM (Right Angle, Pair)
Wheel - 65mm (Rubber Tire, Pair)
https://www.sparkfun.com/products/13259
$2.36

SolidWorks Model
SparkFun RedBot Sensor - Line Follower
https://www.sparkfun.com/products/11769
$2.36
Servo - Hitec HS-422 (Standard Size)
https://www.sparkfun.com/products/11884
$9.95
Battery Holder 4xAA with Cover and Switch
https://www.sparkfun.com/products/12083
$1.56

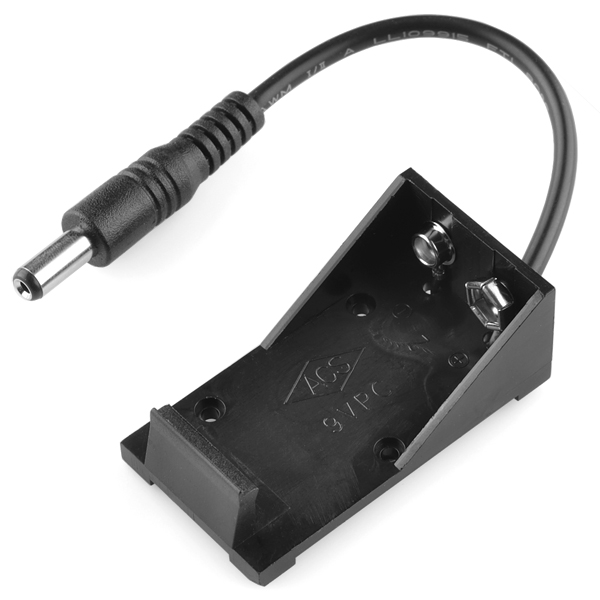

9V Battery Holder
https://www.sparkfun.com/products/10512
$2.36





Project Chassis Options


Design Option 1

concept sketch
Design Option 2

Artist rendering of proposed design
Design Option 3

Preliminary design drawings
(pre-production)
Currently Available

Ready to ship!!!
